The Forward and Backward of a Convolutional Neural Network

1/12/22

Introduction

Convolutional neural networks are an architecture of neural nets designed to process grid-like data such as images. They're a nice architecture to move onto in the journey of learning neural nets because they help show the innate generalizing capabilites of networks, but not, in my opinion, too much such that it easily confuses. Here, I focus on discussing the forward and backward transformations between layers in a CNN. I may add transformations in the future, so everything will be listed in the table of contents provided above.

When understanding CNNs, colored RGB images are a solid example to think of as input because they are able to easily and intuitively be represented as 3d tensors. Whenever I talk about inputs for a CNN here, I will be thinking of colored images.

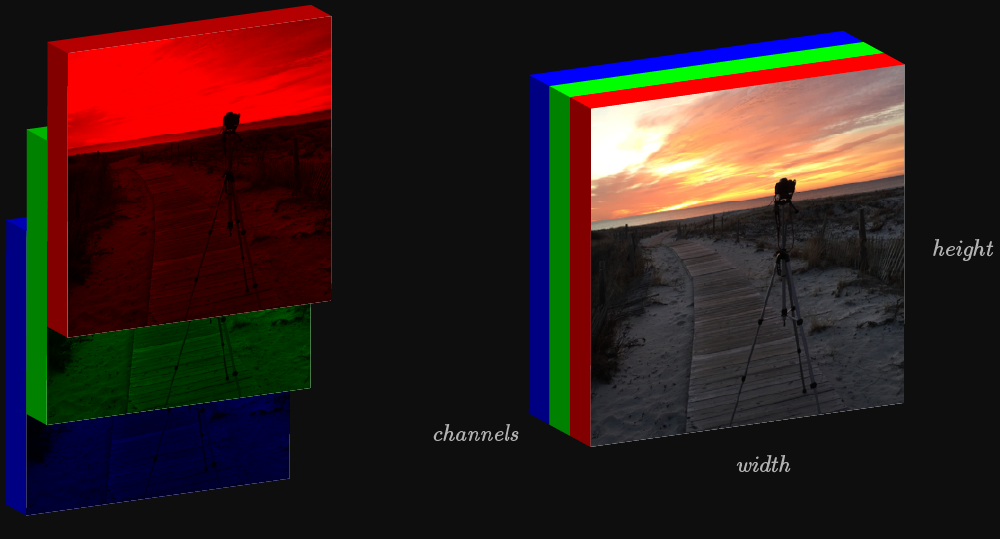

On the left shows the image isolated to the 3 color channels. When layered and blended properly, shown on the right, we get a properly colored image.

Convolutional Layer

Forward

CNNs, similar to MLPs operate under the same archetype of , except are designed to preserve spatial structure. Because there is no dimension reduction, to deal with these high dimensional inputs, the weight matrix w, also frequently referred to as a kernel or filter operates on a portion of the input by taking the dot product then convolves/slides/translates to the next portion. The kernel usually extends to the full depth of the input; there are times when this is not true. The output of the series of dot products composes the activation map. As the input traverses through a CNN, it is typically expected for it to get progressively "stumpier", where what it loses in width & height grows in depth. The linked image shows 4 activation maps, producing a 4x4x4 output, from the original 3x5x5 input.

Simple animation showing a 3x2x2 kernel interacting with a 3x5x5 input. Stride is 1 and there is no padding.
Right click on animation to toggle controls or open in a new tab to enlarge.

Code breakdown for a forward pass in a convolutional layer. PyTorch does have a class that does this must faster, but for understanding - I am a fan of what's below. The actual operations occur within the nested for loops.

999
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
  def forward(x, w, b, conv_param):
      """
      - x: Input data of shape (N, C, H, W). The input is 4 dimensional here because
        NNs usually operate on batches of data: (Batch size x Channel x Height x Width).
      - w: Filters of shape (F, C, HH, WW). Aka: (Fiter count x Channel x Filter Height x Filter Width)
      - b: Biases, of shape (F)

      Returns a tuple of:
      - out: Output data, of shape (N, F, H', W') where H' and W' are given by
      H' = 1 + (H + 2 * pad - HH) / stride
      W' = 1 + (W + 2 * pad - WW) / stride
      - cache: (x, w, b, conv_param)
      """

      # Getting shape sizes. We don't actually need w.shape[1] (channels), so that is omitted with '_'.
      N, C, H, W = x.shape
      F, _, HH, WW = w.shape

      # Get hyperparameters. Default to stride = 1, padding = 0.
      stride = conv_param.get('stride', 1)
      pad = conv_param.get('pad', 0)

      # Formula for calculating the width & height of activation map with hyperparameters.
      hPrime = 1 + (H + 2 * pad - HH) // stride
      wPrime = 1 + (W + 2 * pad - WW) // stride

      # Wrap input x with pad: https://pytorch.org/docs/stable/generated/torch.nn.functional.pad.html
      xpad = torch.nn.functional.pad(x, (pad,pad,pad,pad)).to(x.dtype).to(x.device)

      # Define output/activation map shape
      out = torch.zeros(N, F, hPrime, wPrime).to(x.dtype).to(x.device)

      # For each image in the batch
      for n in range(N):
         # For each filter
         for f in range(F):
            # Index along the height of activation map
            for h in range(0, hPrime):
               # Index along the width of activation map
               for W in range(0, wPrime):
                  # CNN takes the sum of the elementwise multiplication (dot product) between kernel
                  # and input and then adds the bias associated with that filter.
                  #
                  # Number of bias always corresponds 1:1 with number of filters
                  #
                  # We are demarcating the portion of the input to dot product with. Referring back
                  # to the animation above may help.
                  out[n, f, h, W] = torch.sum(xpad[n, :, h*stride:h*stride+HH, W*stride:W*stride+WW] * w[f, :, :, :]) + b[f]

      cache = (x, w, b, conv_param)
      return out, cache

Backward

Consider again thinking about the equation $f(x) = w^\top x+b$. Looking at the equation, it is very easy to find the desired local gradients and then simply multiply them by the upstream:

$$\frac{\partial{L}}{\partial{x}} = \frac{\partial{f}}{\partial{x}} \cdot upstream= w \cdot dout$$
$$\frac{\partial{L}}{\partial{w}} = \frac{\partial{f}}{\partial{w}} \cdot upstream= x \cdot dout$$
$$\frac{\partial{L}}{\partial{b}} = \frac{\partial{f}}{\partial{b}} \cdot upstream= dout$$

The tricky part is thinking about the interaction between the tensor shapes. "Okay...so we're indexing along dimension x and this 4x2x5x5 tensor multiples elementwise with this 2x3x3x3..." For more elaborate discussion, my post on differentiating batch normalization and recurrent neural networks may be helpful. Keeping it simple however, here are some "rules" which work well for me:

Gradients, ie: $\frac{\partial{f}}{\partial{x}}$, match dimensionality of what is being differentiated wrt to.
Calculating the entire gradient is a running sum (note the += on lines 39, 46, and 47 where the gradient formulas are shown).
Make sure to properly "locate" where a gradient belongs. Consider what needs to be indexed in order to compute a gradient. For instance, db on line 39 can be next to dw and dx, but unlike dw and dx, it doesn't need to be since we're only indexing along f.

999
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
  def backward(dout, cache):
      """
      Inputs:
      - dout: Upstream derivatives.
      - cache: A tuple of (x, w, b, conv_param).

      Returns a tuple of:
      - dx: Gradient with respect to x
      - dw: Gradient with respect to w
      - db: Gradient with respect to b
      """

      # Same as before, get shape sizes and hyperparameters stored in cache.
      x, w, b, conv_param = cache
      N, C, H, W = x.shape
      F, _, HH, WW = w.shape

      # Same as before, get the stride and padding. If DNE, set to 1 and 0 respectively.
      stride = conv_param.get('stride', 1)
      pad = conv_param.get('pad', 0)

      # Also same as forward pass
      xpad = torch.nn.functional.pad(x, (pad, pad, pad, pad)).to(x.dtype).to(x.device)
      hPrime = 1 + (H + 2 * pad - HH) // stride
      wPrime = 1 + (W + 2 * pad - WW) // stride

      dxpad = torch.zeros_like(xpad).to(x.dtype).to(x.device)
      dx = torch.zeros_like(x).to(x.dtype).to(x.device)
      dw = torch.zeros_like(w).to(x.dtype).to(x.device)
      db = torch.zeros_like(b).to(x.dtype).to(x.device)

      # For each image in the batch
      for n in range(N):
         # For each filter
         for f in range(F):
            # Derivative wrt bias. Since there is only 1 bias per filter, we can evaluate the gradient when
            # indexing through those filters, F. The gradient wrt to bias is simply dout indexed corresponding
            # to the respective bias.
            db[f] += torch.sum(dout[n, f])
            # Indexing along the height
            for h in range(0, hPrime):
               # Indexing a long the width
               for i in range(0, wPrime):
                  # Note how we deal with padding & striding. Striding should be intuitive, but for padding
                  # we use dxpad as an intermediary step and then on line 49, clip the padding to get dx.
                  dw[f] += xpad[n, :, h * stride:h * stride + HH, i * stride:i * stride + WW] * dout[n, f, h, i]
                  dxpad[n, :, h * stride:h * stride + HH, i * stride:i * stride + WW] += w[f] * dout[n, f, h, i]

      dx = dxpad[:, :, pad:pad+H, pad:pad+W]
      return dx, dw, db

Activation

Forward

The forward pass through activation layers operate element-wise. ReLU is shown below and iterates through each neuron to check if it is greater than 0. I discuss the forward pass for other activations, such as tanh, in my post on RNNs linked above. PyTorch has a bunch of well documented activation classes.

999
1
2
3
4
5
6
7
8
9
10
11
12
13
14
  def forward(x):
      """
      Input:
      - x: Input; a tensor of any shape
      Returns a tuple of:
      - out: Output, a tensor of the same shape as x
      - cache: x
      """

      k = torch.tensor([0])
      out = torch.maximum(x, k.to(x.device))

      cache = x
      return out, cache

Backward

Backprop through this layer funtions similarly. A convenience of ReLU is that all the local gradients will equal to 1, so this transformation behaves like a mask that only allows the corresponding index between the activated neurons and dout to progress backwards unchanged. Link to torch.gt().

999
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
  def backward(dout, cache):
      """
      Input:
      - dout: Upstream derivatives, of any shape
      - cache: Input x, of same shape as dout
      Returns:
      - dx: Gradient with respect to x
      """

      # torch.gt() returns truthy if x > 0. Having the dtype of tensor
      # g match x translates boolean values to 1's and 0's.
      g = torch.tensor(torch.gt(x, 0), dtype=x.dtype, device=x.device)
      dx = dout*g

      return dx

An example below. Backpropagation through a single transformation can be broken down to two steps:

1) There is the local computation. For the convolutional backpass, this was computing the local jacobian for $f(x) = w^\top x+b$. For ReLU, this means doing the same to the piecewise function which will provide 1's and 0's: $$f(x) = \begin{cases} x & \text{if $x \gt 0$} \\ 0 & \text{otherwise} \\ \end{cases} $$ 2) Multiply that local computation by the upstream. I use dout to refer to the upstream.

999
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
   # An example of the local operation for the backwards pass of a ReLU transformation.
   # Input tensor retrieved from cache
   tensor([[-0.3, -0.0,  0.2, -2.3,  0.5,  0.6, -0.1,  1.0, -0.2, -0.5],
         [ 0.6,  1.3, -1.9, -0.0,  1.2,  1.4, -1.1, -0.0, -1.4, -1.3],
         [ 0.7, -0.3, -0.8, -0.5,  3.2,  0.0, -1.6,  1.3, -0.4, -0.7],
         [-1.4, -0.1, -0.2, -0.6, -0.0,  0.1, -0.7,  0.1,  1.3, -1.9],
         [ 0.8, -0.6,  1.1,  1.3,  0.2,  0.1, -0.4,  0.1, -0.3, -0.8],
         [ 0.6, -1.1,  1.1,  0.2, -0.3, -0.9,  0.6, -0.2, -0.6, -1.0],
         [-1.5, -0.9, -1.4, -0.0,  0.1,  0.8, -0.7,  0.9,  0.4,  0.1],
         [ 1.9,  0.3,  0.3, -1.0, -1.4, -0.9, -1.0, -0.1,  1.0,  0.8],
         [ 0.2,  1.4, -0.8,  1.1,  1.1,  1.8, -0.5, -1.0,  1.9,  0.8],
         [ 1.0,  1.1, -2.6, -2.1,  1.9,  0.0, -0.2,  0.6, -0.7, -0.5]],
         device='cuda:0', dtype=torch.float64)

   # The "masking" that ReLU provides. All greater than 0 values evaluate
   # to 1 to be multiplied by dout. All less than 0 values == 0.
   tensor([[0., 0., 1., 0., 1., 1., 0., 1., 0., 0.],
         [1., 1., 0., 0., 1., 1., 0., 0., 0., 0.],
         [1., 0., 0., 0., 1., 1., 0., 1., 0., 0.],
         [0., 0., 0., 0., 0., 1., 0., 1., 1., 0.],
         [1., 0., 1., 1., 1., 1., 0., 1., 0., 0.],
         [1., 0., 1., 1., 0., 0., 1., 0., 0., 0.],
         [0., 0., 0., 0., 1., 1., 0., 1., 1., 1.],
         [1., 1., 1., 0., 0., 0., 0., 0., 1., 1.],
         [1., 1., 0., 1., 1., 1., 0., 0., 1., 1.],
         [1., 1., 0., 0., 1., 1., 0., 1., 0., 0.]],
         device='cuda:0', dtype=torch.float64)

Pooling Layer

Forward

The pooling transformation is similar to the convolutional layer. A kernel that extends the full depth slides across the face of the input to "pool" together the sectioned values. I show max pooling, but there are other forms of pooling. Even though the pooling kernel operates on the full depth of the input, the pooling operation operates uniquely on each slice of the depth. So an arbitrary tensor, lets say [6x20x20], going through a pooling layer with kernel of size 2 and stride 2 would output to [6x10x10].

999
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
  def forward(x, pool_param):
      """
      Inputs:
      - x: Input data, of shape (N, C, H, W)

      Returns a tuple of:
      - out: Output data, of shape (N, C, H', W') where H' and W' are given by
         H' = 1 + (H - pool_height) / stride
         W' = 1 + (W - pool_width) / stride
      - cache: (x, pool_param)
      """
      # Initialize x shape values
      N, C, H, W = x.shape

      # Get the width, height, and stride of pooling kernel stored inside pool_param
      pHeight = pool_param.get('pool_height', 2)
      pWidth = pool_param.get('pool_width', 2)
      stride = pool_param.get('stride', 2)

      # Define the output shape for us to index over
      hPrime = 1 + (H - pHeight) // stride
      wPrime = 1 + (W - pWidth) // stride

      # Init out tensor of desired shape
      out = torch.zeros((N, C, hPrime, wPrime)).to(x.dtype).to(x.device)

      # Max pooling. torch.max method returns a list of 2 elements: [0] = lowest value(s) along optional dimension
      # and [1] = the index of the lowest value(s). We're only needing the zeroth of the list. The second argument
      # is such that we find the max value over the last dimension.
      for h in range(hPrime):
         for j in range(wPrime):
            out[:, :, h, j] = torch.max(torch.max(x[:, :, h*stride:h*stride+hPrime ,j*stride:j*stride+wPrime], -1)[0], -1)[0]

      cache = (x, pool_param)
      return out, cache

Backward

Backpass through a pooling transformation routes dout values to the index of the largest value of the corresponding partition. Because pooling is a form of spatial reduction, on the backpass we have to upscale to produce a valid output tensor shape. Down below, I immediately produce the desired shape for dx and populate it with zeros (line 24), then mutate the values of the desired index (line 26-40).

999
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
  def backward(dout, cache):
      """
      Inputs:
      - dout: Upstream derivatives

      Returns:
      - dx: Gradient with respect to x
      """
      # Init values to index through
      x, pool_param = cache
      N, C, H, W = x.shape

      # Get the width, height, and stride of pooling kernel stored inside pool_param
      pHeight = pool_param.get('pool_height', 2)
      pWidth = pool_param.get('pool_width', 2)
      stride = pool_param.get('stride', 2)

      # Define the output shape for us to index over
      hPrime = 1 + (H - pHeight) // stride
      wPrime = 1 + (W - pWidth) // stride

      # Init our output variable. We populate with zeros first and then mutate the activated values
      # in the backpass
      dx = torch.zeros_like(x).to(x.device)

      for n in range(N):
         for c in range(C):
               for j in range(hPrime):
                  for i in range(wPrime):
                     # May look a little confusing but just note that
                     # x[n, c, j*stride:j*stride+pHeight, i*stride:i*stride+pWidth] just references the partition
                     # our kernel slides over at every iteration.
                     #
                     # ind gets the index for the maximum value in the partition, which afterwards we index
                     # through that same partition and mutate it's maximum value using ind. Note again this is
                     # for max pooling, so we desire the largest value.
                     ind = (x[n, c, j*stride:j*stride+pHeight, i*stride:i*stride+pWidth]==torch.max( \
                     x[n, c, j*stride:j*stride+pHeight, i*stride:i*stride+pWidth])).nonzero()
                     dx[n, c, j*stride:j*stride+pHeight, i*stride:i*stride+pWidth][ind[0][0], ind[0][1]] = dout[n, c, j, i]
                     # dx[n, c, j*stride:j*stride+pHeight, i*stride:i*stride+pWidth][ind] = dout[n, c, j, i]

      return dx

An example below. With pooling kernel size of 2 and stride 2, look how the values (dout) that get through the backwards pass are indexed to the maximum value of every 2x2 square with stride 2.

999
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
   # An example of the local operation for the backwards pass of a Max Pooling transformation.
   # An 8x8 slice of a tensor
   tensor([[-0.3104, -0.0343,  0.1756, -2.2804,  0.5039,  0.5596, -0.0750,  0.9691],
         [-0.2357, -0.4582,  0.5661,  1.2851, -1.8667, -0.0312,  1.2433,  1.3689],
         [-1.0753, -0.0158, -1.4481, -1.3089,  0.6980, -0.3300, -0.7708, -0.4946],
         [ 3.1702,  0.0387, -1.5728,  1.2985, -0.4419, -0.6965, -1.4002, -0.0884],
         [-0.2369, -0.5956, -0.0263,  0.0546, -0.7082,  0.0642,  1.2830, -1.8728],
         [ 0.7562, -0.6345,  1.1176,  1.3382,  0.1994,  0.0671, -0.4159,  0.1468],
         [-0.2672, -0.7882,  0.5857, -1.0649,  1.0950,  0.2490, -0.3271, -0.8691],
         [ 0.5576, -0.1883, -0.5894, -1.0192, -1.4553, -0.8599, -1.3645, -0.0069]],
         device='cuda:0', dtype=torch.float64)

   # The backpass of the tensor for max pooling. Kernel size = 2, stride = 2
   tensor([[ 0.0000,  0.3292,  0.0000,  0.0000,  0.0000,  0.9055,  0.0000,  0.0000],
         [ 0.0000,  0.0000,  0.0000,  0.2507,  0.0000,  0.0000,  0.0000, -0.4100],
         [ 0.0000,  0.0000,  0.0000,  0.0000, -0.5062,  0.0000,  0.0000,  0.0000],
         [-0.9453,  0.0000,  0.0000,  2.1075,  0.0000,  0.0000,  0.0000,  0.0700],
         [ 0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0783,  0.0000],
         [-1.0990,  0.0000,  0.0000,  0.9257,  0.4166,  0.0000,  0.0000,  0.0000],
         [ 0.0000,  0.0000, -1.1410,  0.0000,  0.6921,  0.0000,  0.0000,  0.0000],
         [ 2.2135,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000,  0.0000, -0.3034]],
         device='cuda:0', dtype=torch.float64)

Thoughts

I've been wanting to do a little post on CNNs for a roughly a year now. They've been relatively low priority compared to some of the other topics I discuss, but I think (and I state this at the top of the page) CNNs are a great architecture to focus on when learning about machine learning - so the more I thought about them, the more I wanted to write about them. The goal was to concretely breakdown the processes going on during the forward and backward pass of a CNN and how the tensor values change. There are a lot of bells and whistles to a CNN and neural networks in general I did not talk about here, but that's now another topic added to the list of things I want to write about.

Ryan
